DIVISION | SPECIFICATIONS | ||
---|---|---|---|
MODEL |

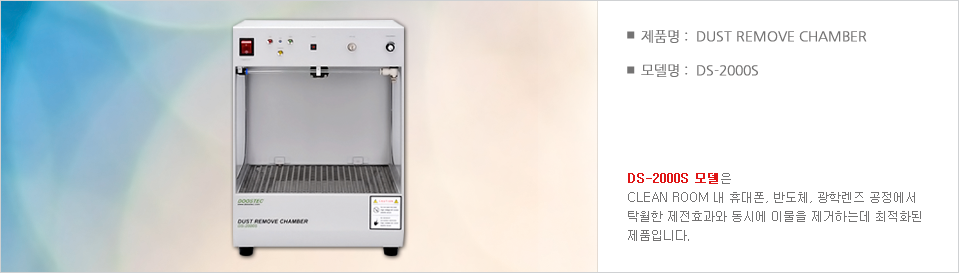

DS-2000S | ||
Ion-Generation Method | Pulse AC | ||
Pressure Range | 0.1 ~ 0.6MPa | ||
Weight (set) | 11㎏ | ||
Air Tube | Ø8 | ||
Function (Alarm) |
Micom Control (LED On, High Voltage Block) | ||
Sensor | Photo Sensor (150mm) | ||
Input Voltage | AC 110/220V, 50/60Hz | ||
Output Voltage | AC 12㎸pp, 30Hz | ||
Residual Voltage | Within ±50V | ||
Power Consumption | 82W, 400㎃ | ||
Electrode Material | Tungsten (99.9%), 2.0*22mm | ||
Warranty | 1 Year (구입일로부터1년) | ||
Operation Circumstance | 0℃ ~ +50℃(32℉ ~ 122℉), 35% ~ 85% RH |
